Exterior
POWERFUL – IMPRESSIVE

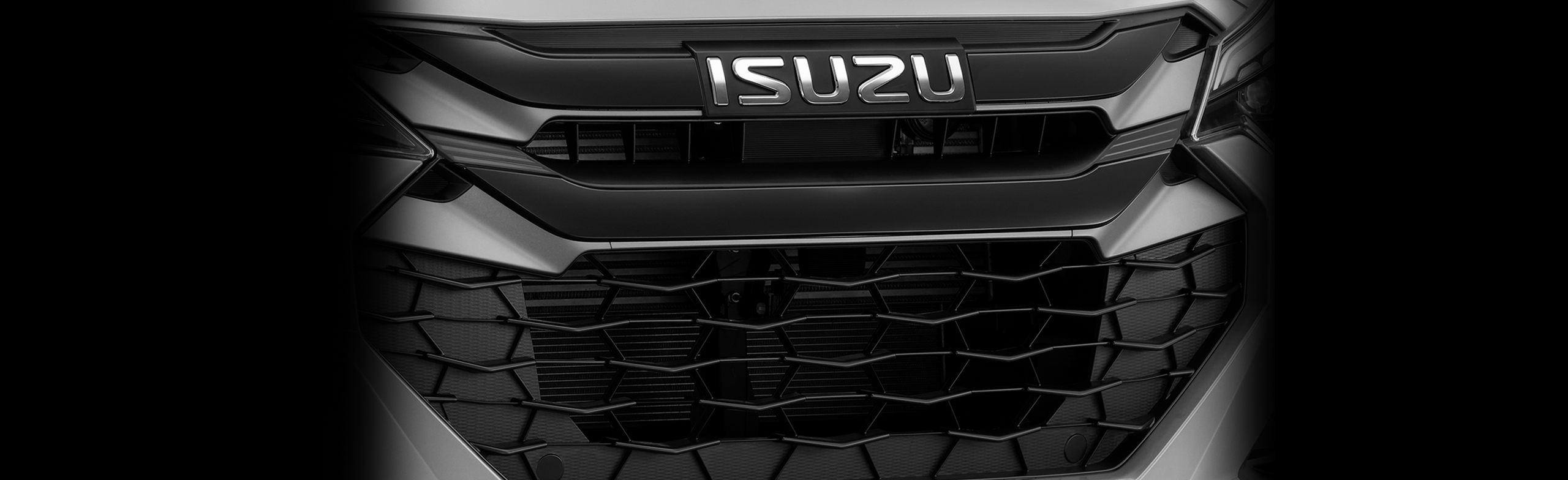

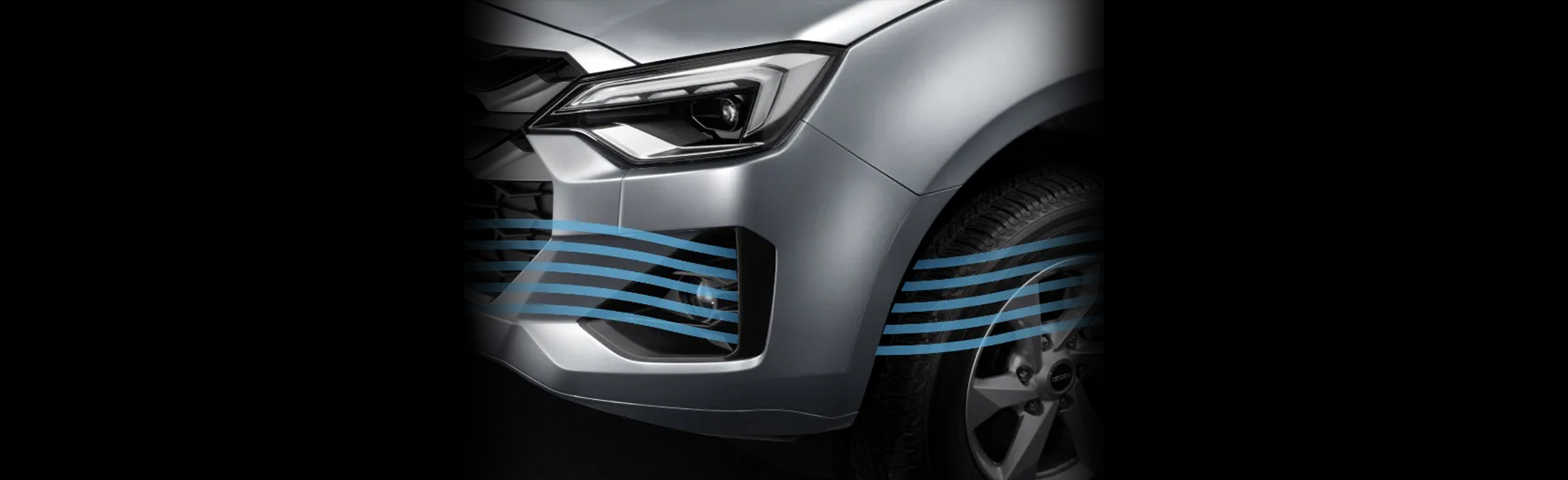

ISUZU D-MAX represents outstanding power and reliability with a strong & sport design. The exterior design of ISUZU D-MAX also stands out with the front radiator grill, along with a larger spoiler. These are not just stylistic additions; they also represent aerodynamic optimization.

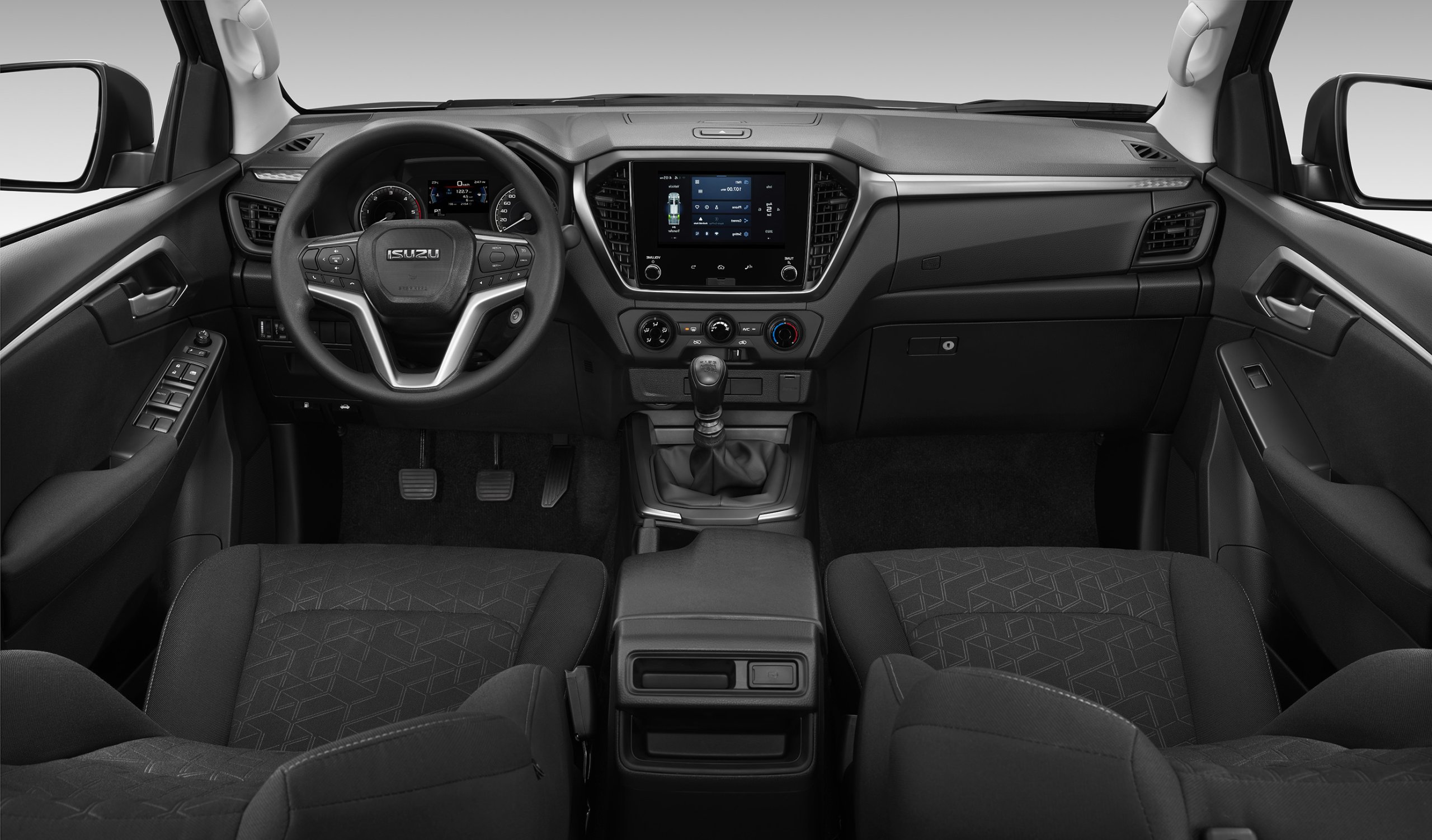

Interior
ADVENTURE IN COMFORT
Comfortable, easy and versatile, ISUZU D-MAX is more than just a pickup truck. It is a mobile space, a place to relax, and a place where you can start your adventure. Whether you are traveling with your family or using it for work, SUZU D-MAX always leads the way with optimal comfort on every journey.
Safety
SAFETY UNCOMPROMISED

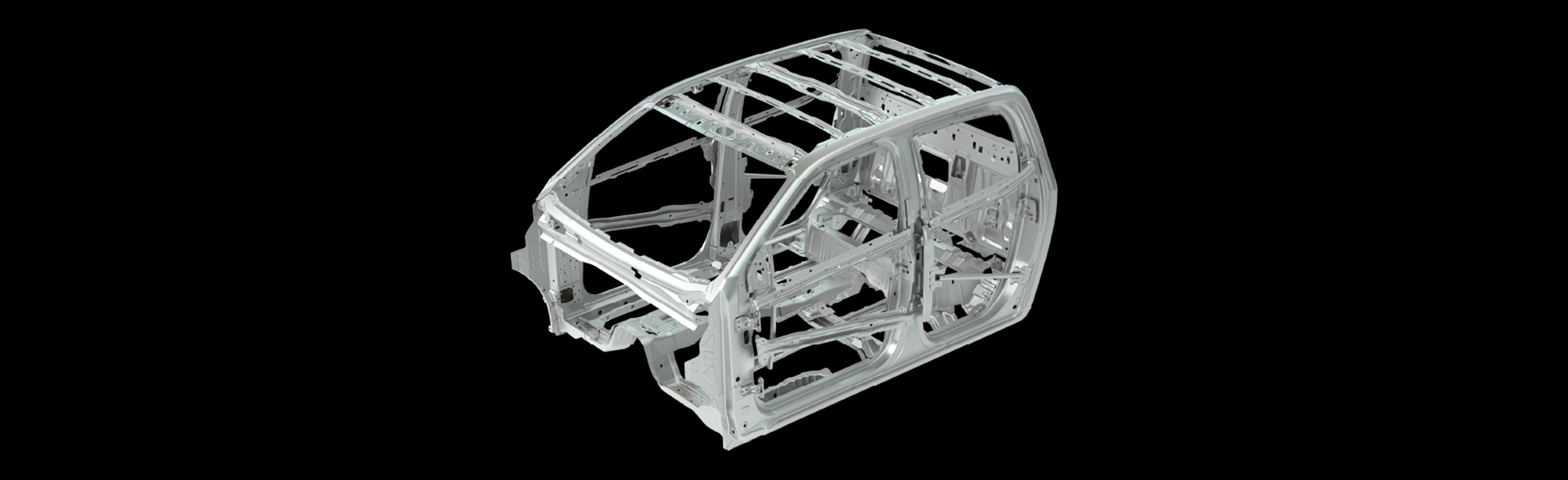

Aiming for maximum safety for you and your family, ISUZU D-MAX is equipped with a series of advanced safety features - supporting the resolution of dangerous situations. Because confidence is not only conquering the most difficult terrain; but also ensuring maximum safety - on every journey.
Performance
DURABILITY AND STABILITY

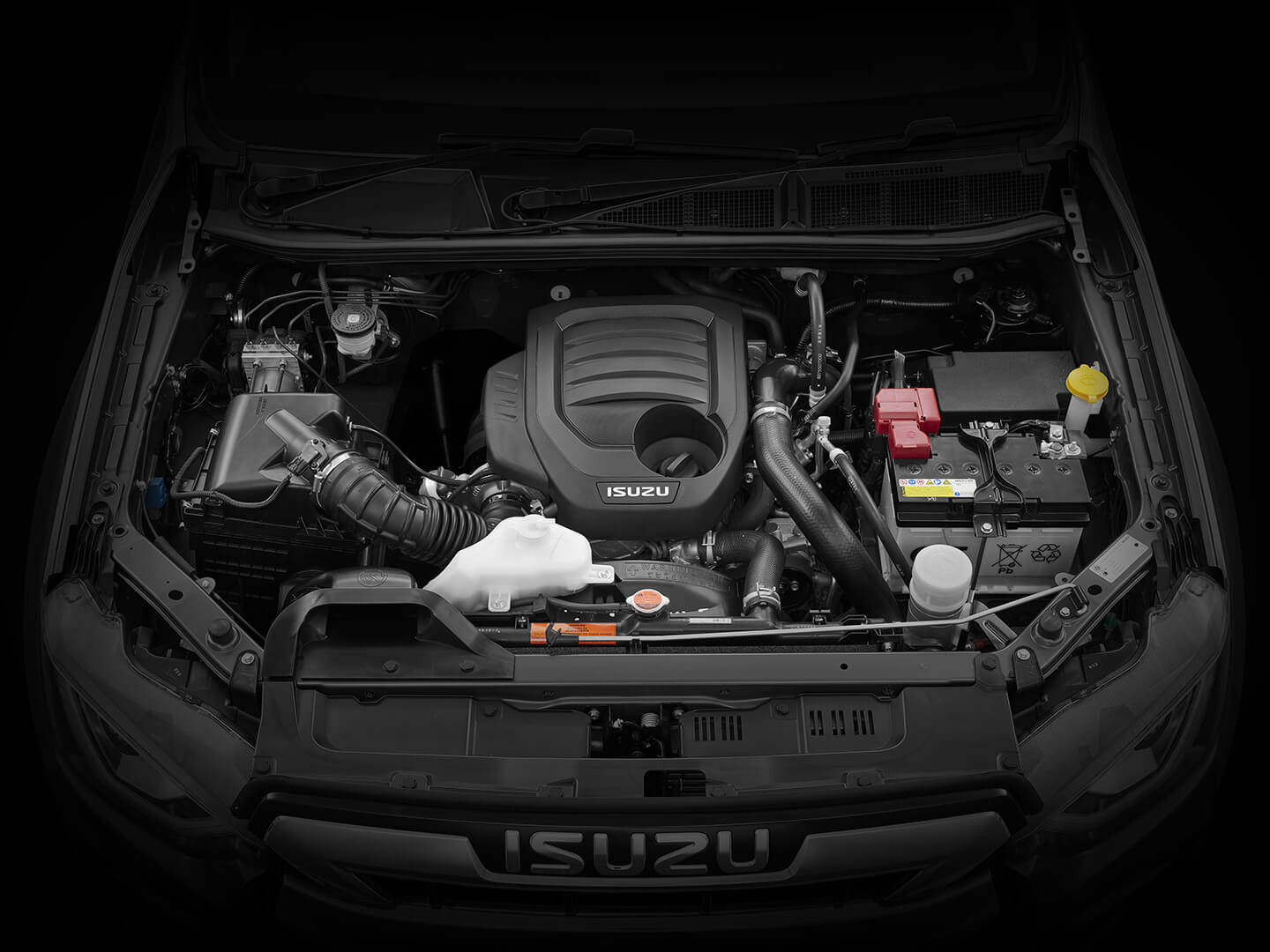

ISUZU D-MAX engine is not only durable, but also meets the emission standards and enrues economical during operation.
explore Specification
OVERVIEW
DIMENSION & WEIGHT
ENGINE
TRANSMISSION
CHASSIS
EXTERIOR
INTERIOR
CONVENIENCE
SAFETY
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383
| Manufacturers Name | Isuzu Motors Co., (Thailand) LTD | |
| Manufacturers Address | 38 Kor. Moo 9, Poochaosamingprai rd., Samrong Tai, Phrapradaeng, Samutprakarn 10130, Thailand | |
| Origin | Thailand | |
| Emission | Euro 5 | |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383
| Overall dimension (L x W x H) | mm | 5,280 x 1,870 x 1,785 |
| Inside cargo dimension (L x W x H) | mm | 1,495 x 1,530 x 490 |
| Wheelbase | mm | 3,125 |
| Front / Rear tread | mm | 1,570/1,570 |
| Ground clearance | mm | 235 |
| Min. turning radius | m | 6.1 |
| Kerbs weight | kg | 1,830 |
| Gross vehicle weight | kg | 2,650 |
| Payload | kg | 495 |
| Fuel tank capacity | liter | 76 |
| Seating capacity | persons | 05 |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383
| Model | RZ4E – TC | |
| Type | In-line 4 cylinders, Diesel 1.9L, Intercooler VGS Turbo, Common Rail | |
| Displacement | cc | 1,898 |
| Max. Power | Ps (kW)/rpm | 150(110)/3,600 |
| Max. Torque | Nm/rpm | 350/1,800~2,600 |
| Drive Configuration | 4×4 | |
| Rough terrain mode | With | |
| Generator | 12V-90A | |
| Emission Standard | EURO 5 |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383
| Type | 6-speed MT |
| Free wheel hubs | – |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383
| Suspension system | Front | Independent, Double Wishbone with Coil Spring |
| Rear | Dependent, Leaf spring | |

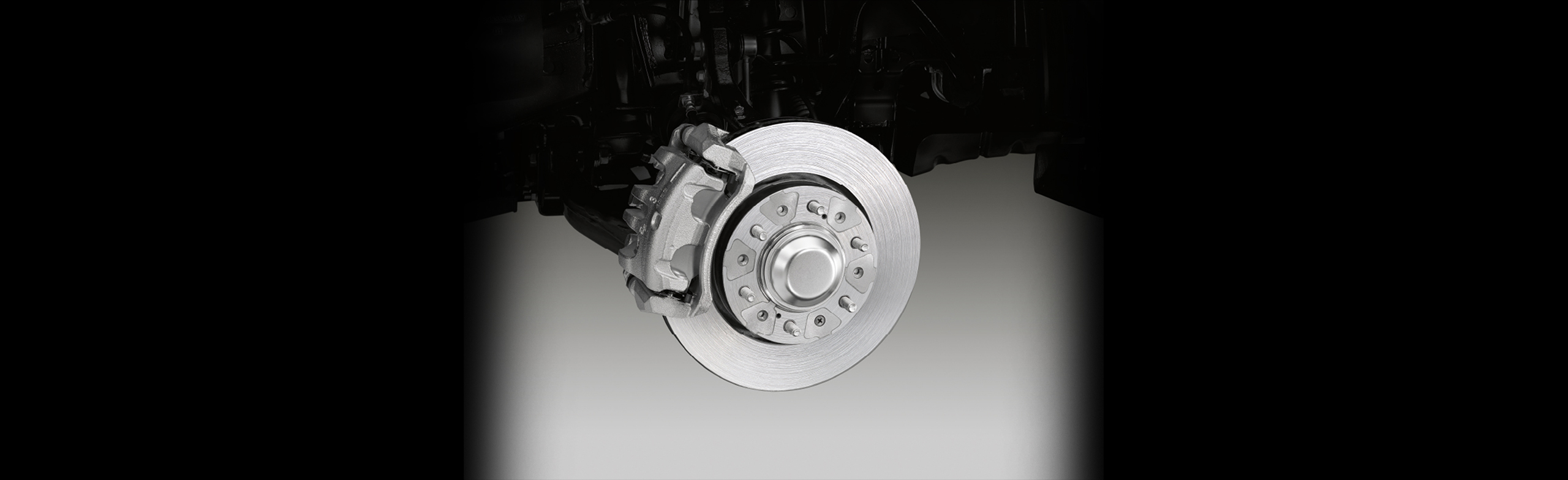

| Brake system | Front | Ventilated Disc |
| Rear | Drum | |
| Assisted steering type | Hydraulic | |

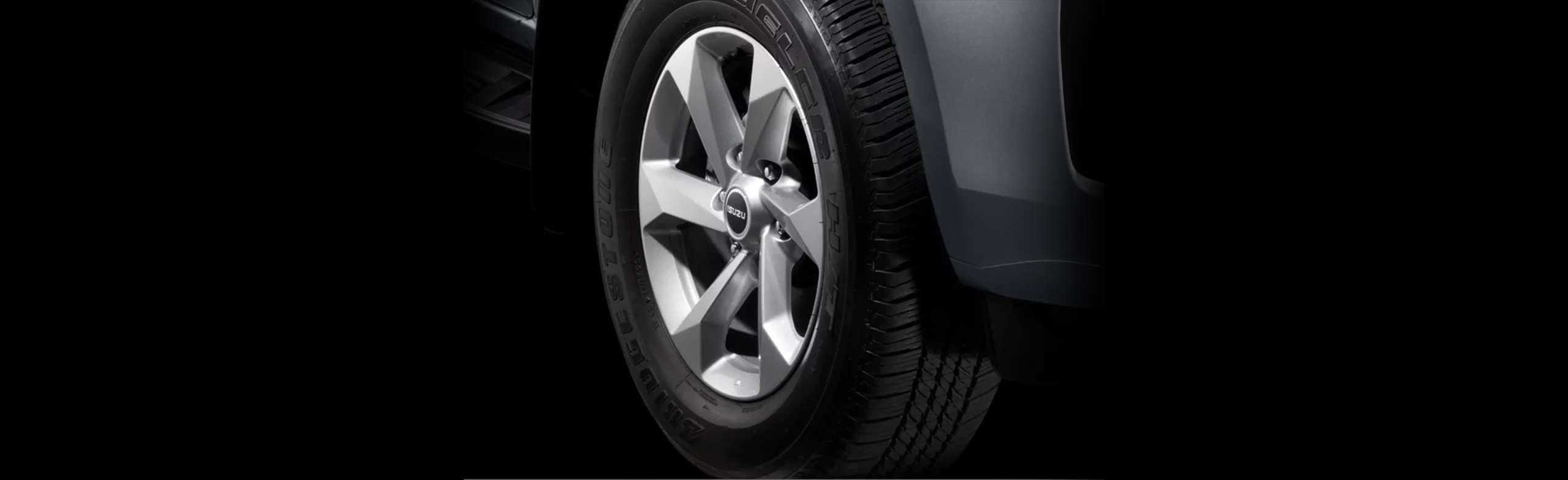

| Tire | 255/65R17 | |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383
| Head lamp | Bi-LED Projector | |
| LED day running light | With | |
| Automatic leveling | – | |
| Fog lamp | Halogen | |
| Outside door handle grip | Titanium silver | |
| Outside door mirror | Power folding | With |
| Power adjustment | With | |
| Tail gate handle | Titanium silver | |
| Side step | Titanium silver | |
| Rear bumper | Integrated 2 steps, body color | |
| Bed liner | With | |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383
| Steering wheel | Type | Urethane + Switch |
| Adjustment | Tilt and telescopic | |

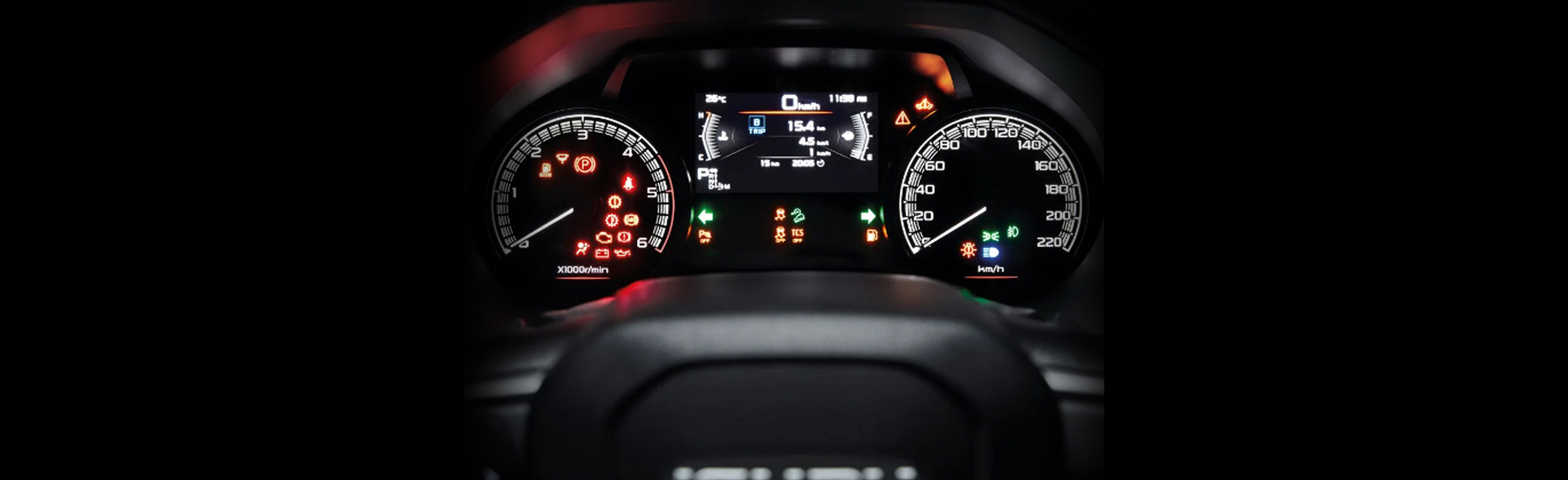

| Multi information display | 4.2 inch display | |
| Seat | 1st row | Manual 6-ways driver seat |
| 2nd row | 60:40 ratio,folding | |
| Seat material | Cloth (high grade) |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383
| Smart key & Push start | – |
| Remote engine start | – |
| Smart entry | – |

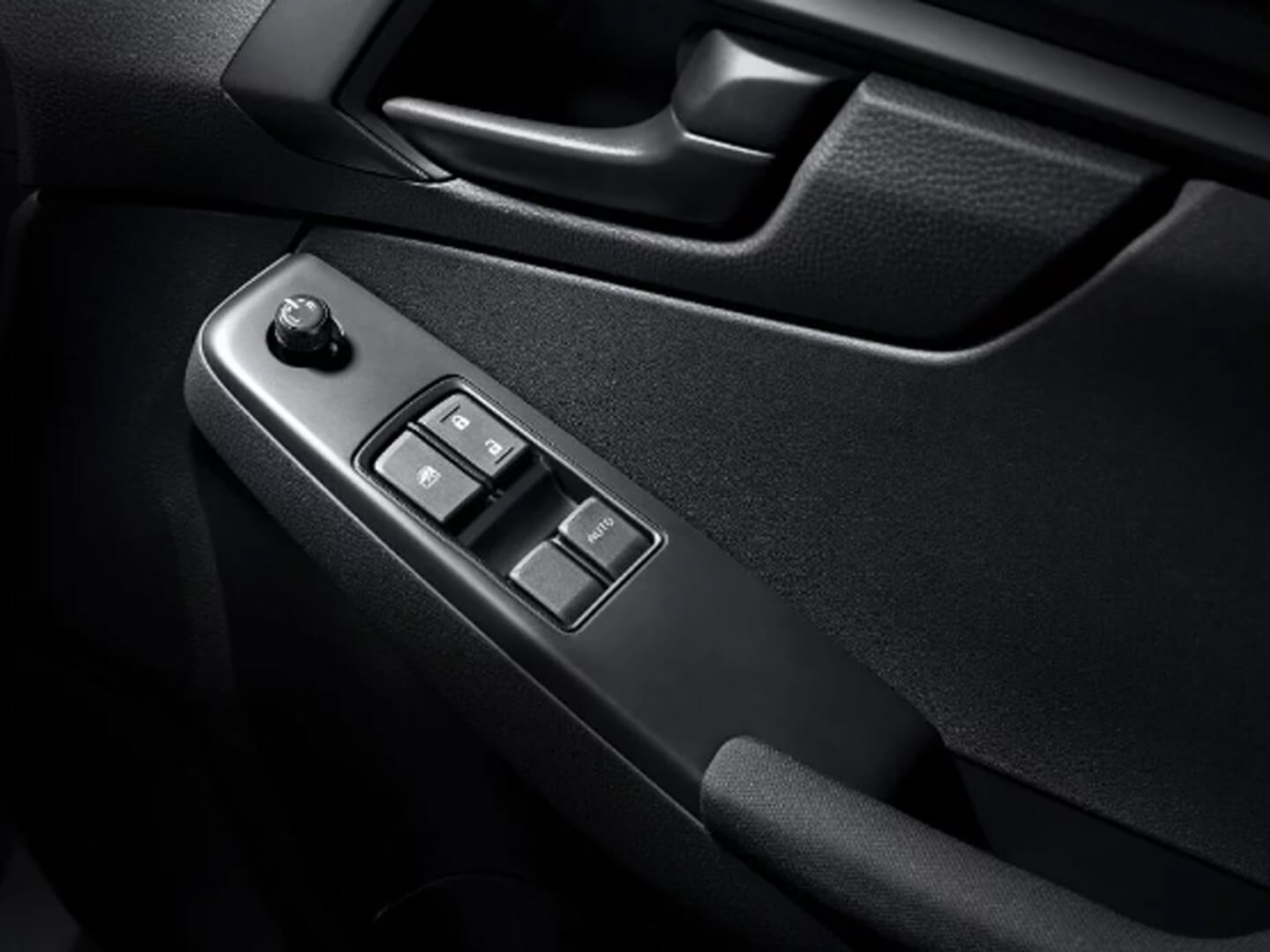

| Power window | Auto up and down with jam protection for driver side |
| Walk away auto door lock | – |
| Follow me home | With |
| Air conditioner | Manual |

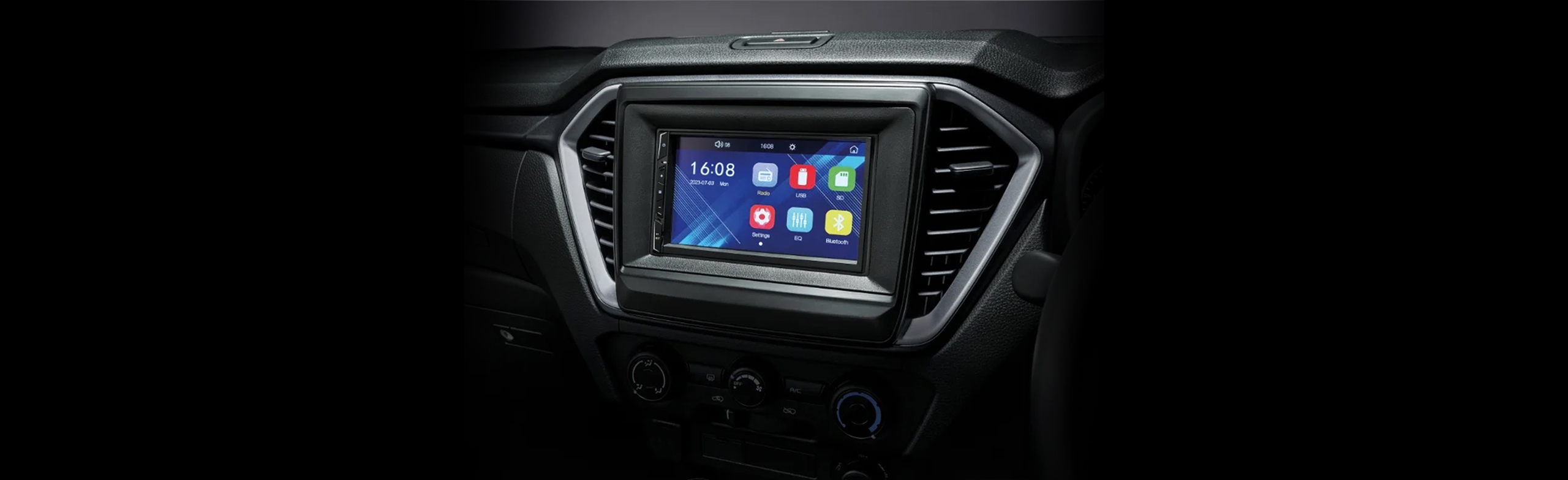

| Entertainment system | 7 inch touch screen, Bluetooth, USB |
| Number of speakers | 04 |
| Fast charging USB | 02 x 5V-2.1A |
| Power outlet (12V,120W) | With |
Deprecated: Function wp_make_content_images_responsive is deprecated since version 5.5.0! Use wp_filter_content_tags() instead. in /home/isuzutaybac/public_html/wp-includes/functions.php on line 5383

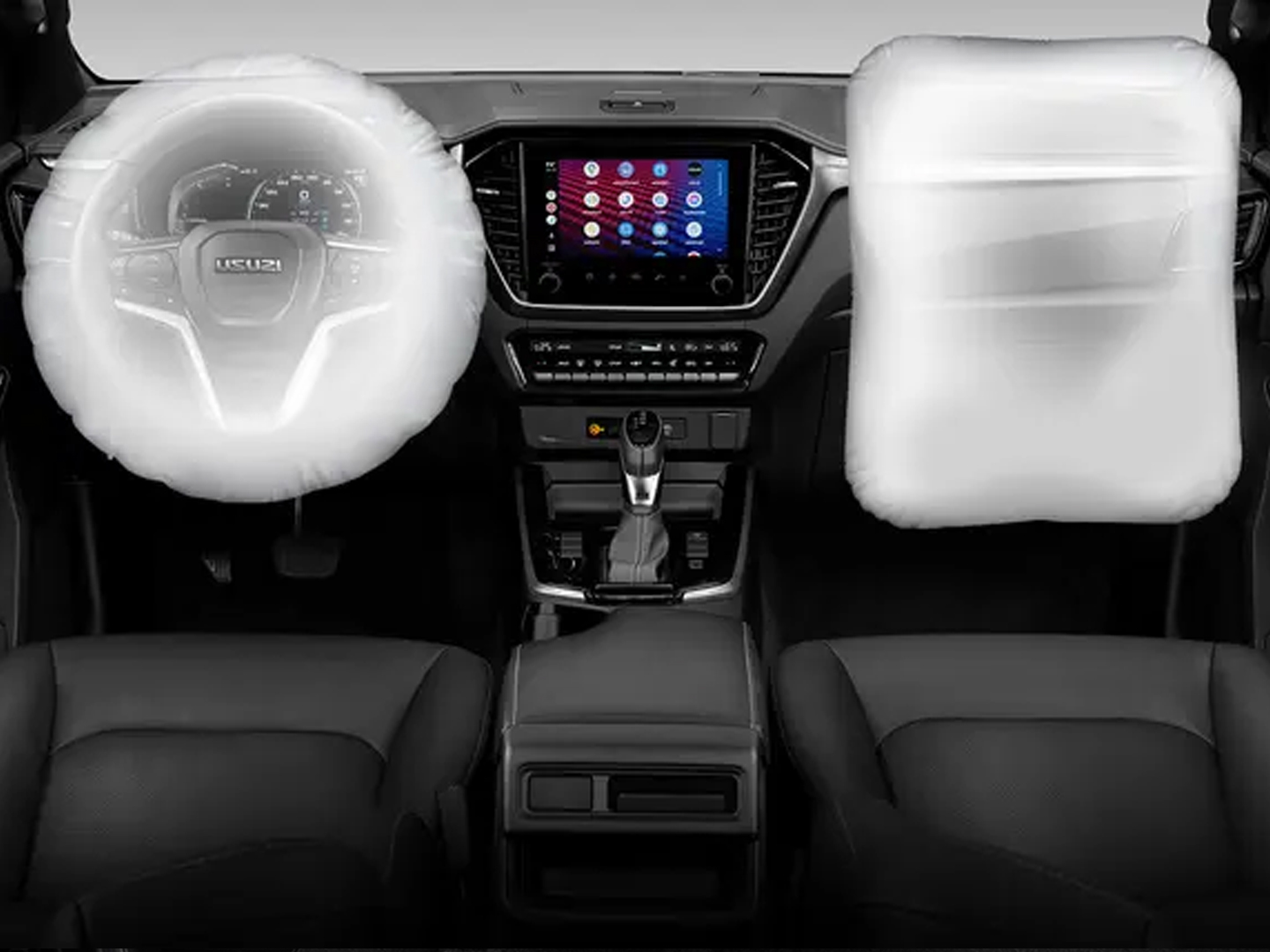

| Airbag | 02 | |
| Anti-block Brake System (ABS) | With | |
| Electronic Brakeforce Distribution (EBD) | With | |
| Brake Assist (BA) | With | |
| Electronic Stability Control (ESC) | With | |
| Traction Control System (TCS) | With | |
| Hill Start Assist (HSA) | With | |
| Hill Descent Control (HDC) | With | |
| Cruise Control | With | |
| Brake Override System (BOS) | With | |
| Blind Spot Monitor (BSM) | – | |
| Rear Cross Traffic Alert (RCTA) | – | |
| Parking Aid System (Front & Rear) | – | |
| Seat belt | 1st row | ELR x 2 with pretensioner & load limiter |
| 2nd row | ELR x 3 | |
| Central door lock | With | |
| Auto door lock | – | |
| Door lock release when airbag deploy | With | |
| Child-proof door lock | With | |
