| Gross vehicle mass | 24,000 (Kg) |
| Gross combination mass | 48,000 (Kg) |
| Max towed weight designed / authorized | 40,000 / 38,770 (Kg) |
| Max. Power | 420 (308) / 1,800 Ps(Kw)/rpm |
| Max. Torque | 2,060/830~1,400 Nm/rpm |
| Emission standard | Euro 5 |
| Manufacturer name | QINGLING MOTORS CO., LTD |
| Manufacturer address | No.1 Xiexing Road, Zhong Liang Shan, Jiu Long Po District 400052, ChongQing (China) |
| Origin | China |
| Suggested retail price | 1,747,440,000 VND |
| Gross vehicle mass | Kg | 24,000 |
| Gross combination mass | Kg | 48,000 |
| Kerb mass | Kg | 9,100 |
| Max towed weight designed / authorized | Kg | 40,000/38,770 |
| No. of seats | 2 | |

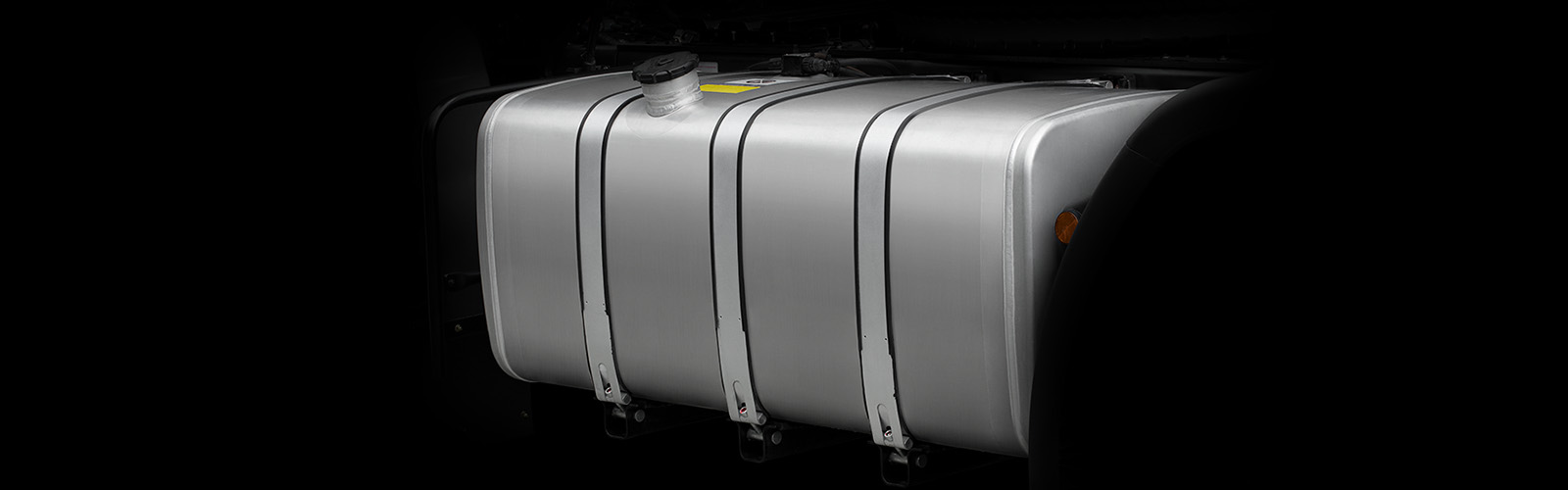

| Fuel tank capacity | Liters | 600 |
| Urea tank capacity | Liters | 40 |
| Overall dimension | mm | 6,895 x 2,500 x 3,970 |
| Wheelbase | mm | 3,385 + 1,370 |
| Front – rear treat | mm | 2,065 / 1,875 |

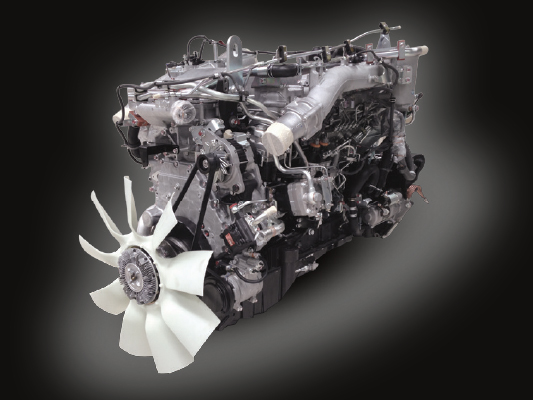

| Model | 6WG1-TCG52 | |
| Type | 4 stroke, 6 cylinders, in line, turbo charged – intercooler | |
| Emission standard | EURO 5 | |
| Bore x stroke | mm | 147 x 154 |
| Displacement | cc | 15,681 |
| Max. Power | PS(kW)/rpm | 420(309)/1,800 |
| Max. torque | Nm/rpm | 2,060/830~1,400 |

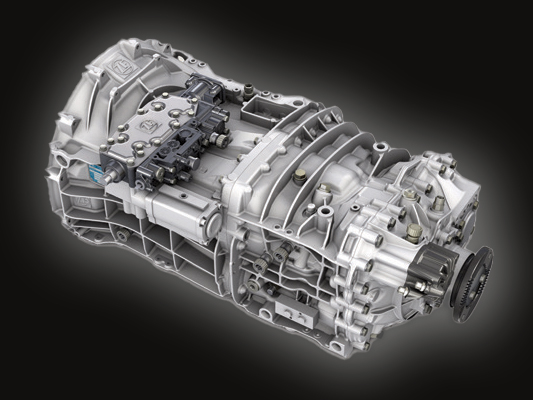

| Transmission |
ZF16 (16S2230TO)
16 forwards, 2 reverse
|
|
| Final gear ratio | 3.909 | |
| Electric axle shift | With | |
| Driving system | 6×4 |
| Steering system | Recirculating ball with hydraulic assisted |
| Suspension system front – rear | Leaf springs, shock absorber |
| Brake system front – rear | Full air brake, drum type |
| Tire size front – rear | 12R22.5 – 18PR |
| Generator | 24V-60A |
| Battery | 12V-120Ah x 02 |

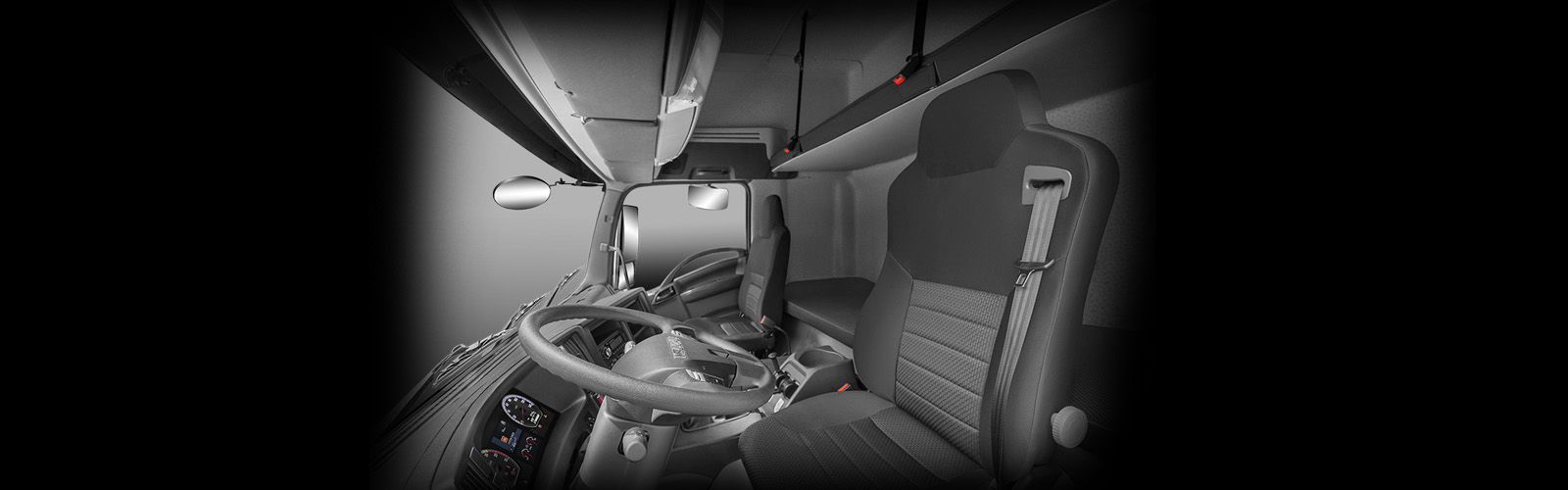

| Driver air seat | With |
| Central door lock | With |
| Auto power windows | With |
| Electric rear mirror | With |
| Headlamp leveling | With |
| Air conditioner | With |
| USB-MP3, AM/FM Radio | With |
| USB charger | With |
| Double-deck berth | With |
| Overhead storage | With |
| Bedside table | With |
| Cabin room lamp | With |
| Reading lamp | With |
| ABS | With |
| Cruise control | With |
| Speed limit | With |
| 3-points seatbelts | With |
| Exhaust brake | With |
| Trailer parking brake | With |
